Energy

DC to DC converters

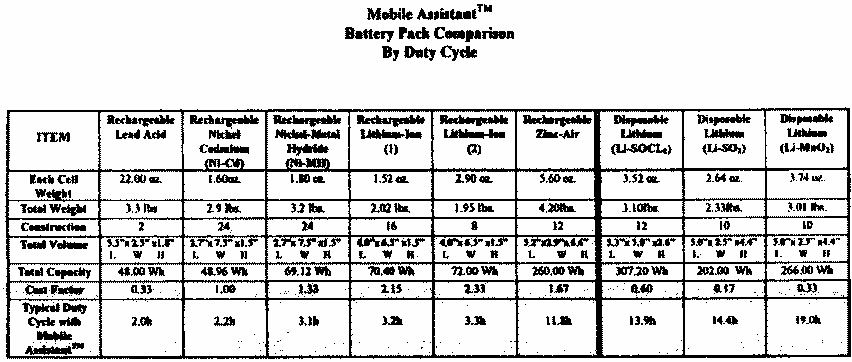

Battery Comparison

Courtesy CPSI

Comparison between lead, nickel cadmium, nickel metal hyrdride, lithium ion, and zinc air rechargeable batteries. Disposable lithium also included. Weight, size, density, cost, and actual duty cycles on the CPSI's Moble Assistant included.

Power Belts from NRG (for the SERIOUS power consumer)

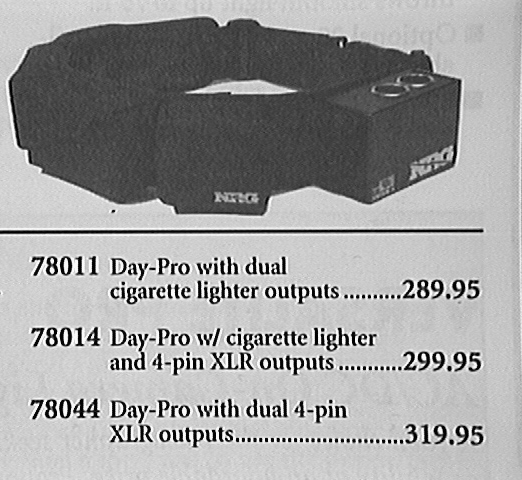

Picture of NRG battery belt

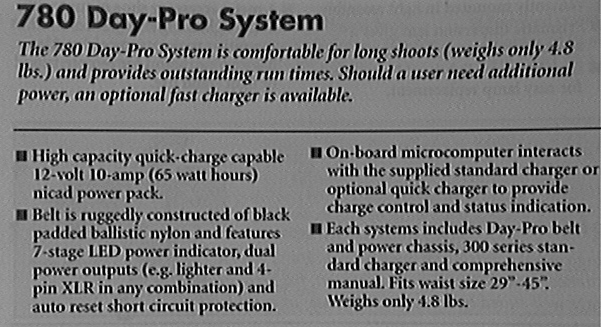

NRG description

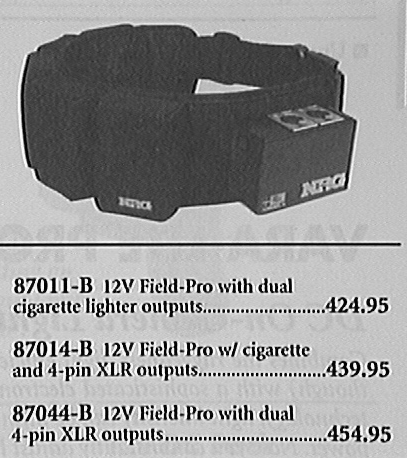

NRG-870

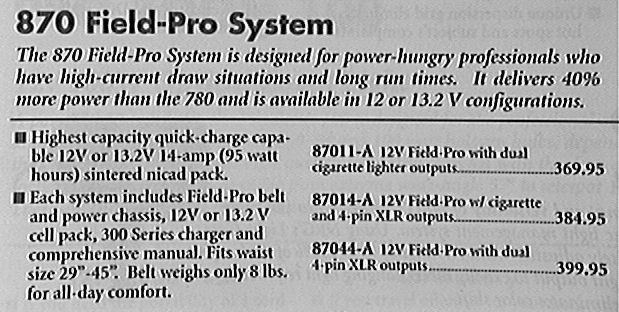

NRG-870 description

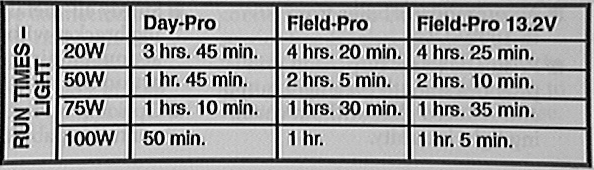

NRG-stats
Above images from B&H Prosumer video source book (B & H 1-800-947-5525). The manufacturer is:
NRG research Inc.
840 Rogue River Hwy
Bldg #144
Grants Pass, OR 97527
1-800-753-0357

Batteries from Sony

Comparison of batteries from Sony (measured on postal scale Adam Oranchak and Steve, Tue Jan 16 20:36:56 EST 1996):
NP-500: 3.4oz, 21.6kJ (6v nominal assumed), 6.35kJ/oz, 406J/cm^3 (size/cm=7*3.8*2);
BP-L60: 30.95oz, 194.4kJ (12v nominal assumed), 6.28kJ/oz, 309kJ/cm^3
BP-L90: 45.9oz, 289.44kJ (12v nominal assumed), 6.3kJ/oz, 284kJ/cm^3
Zinc air are lighter, we believe, but much less power density (perhaps suitable for making into a large garment type distributed supply).

Batteries from Panasonic

Scanned pages (take a while to load):

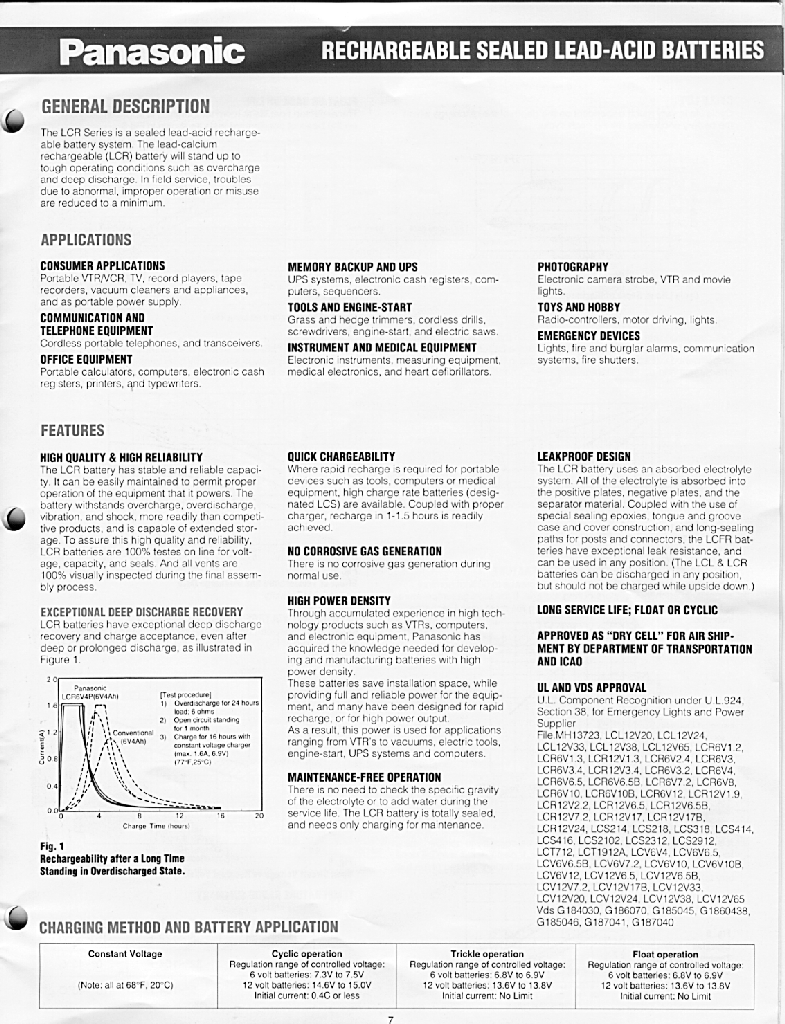

Description, Applications, and Features of Gel Cells

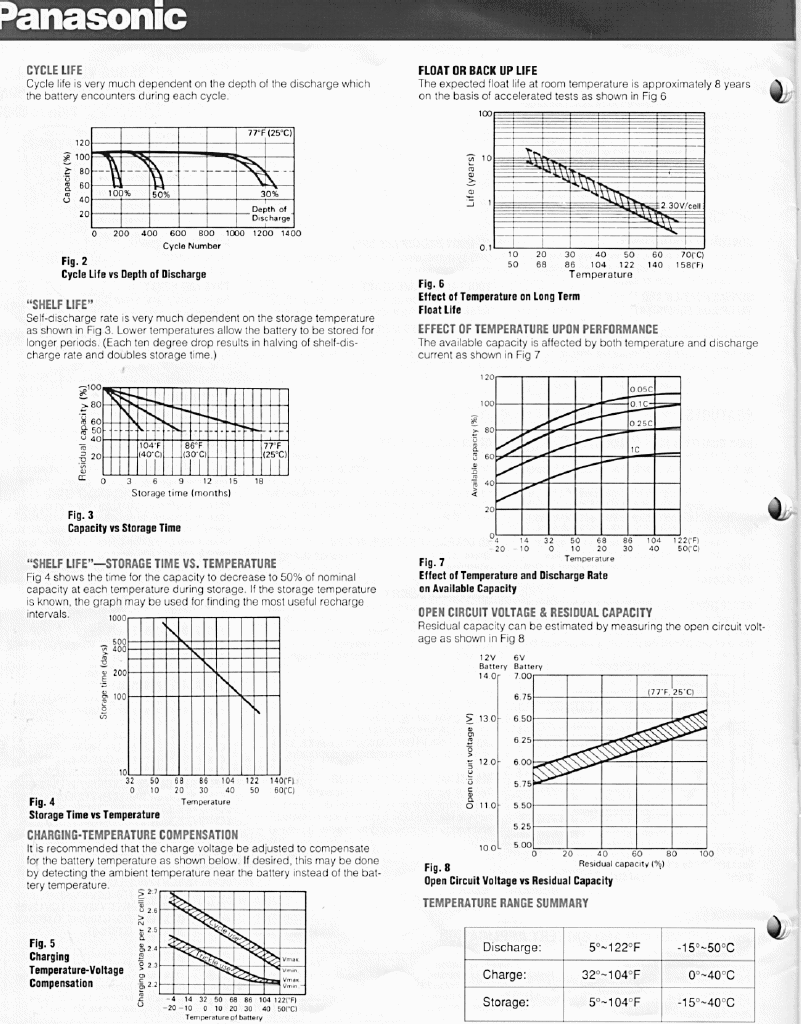

Charge, temperature, capacity, etc. charts

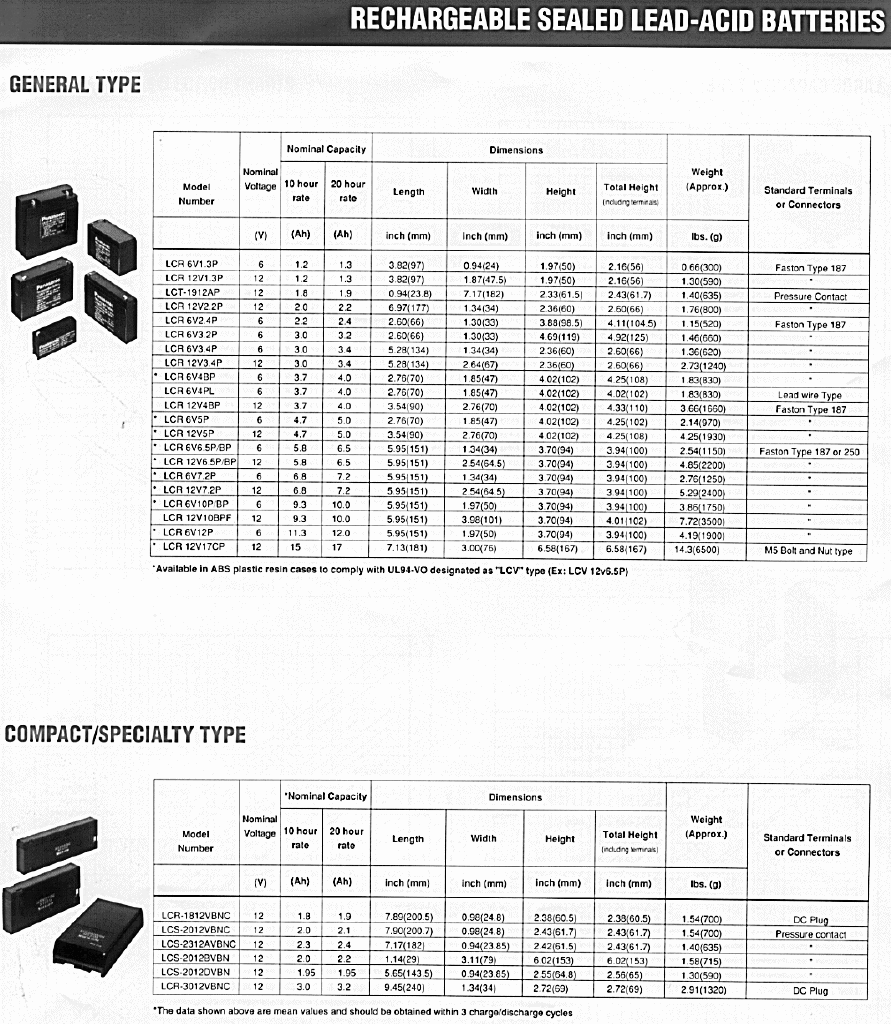

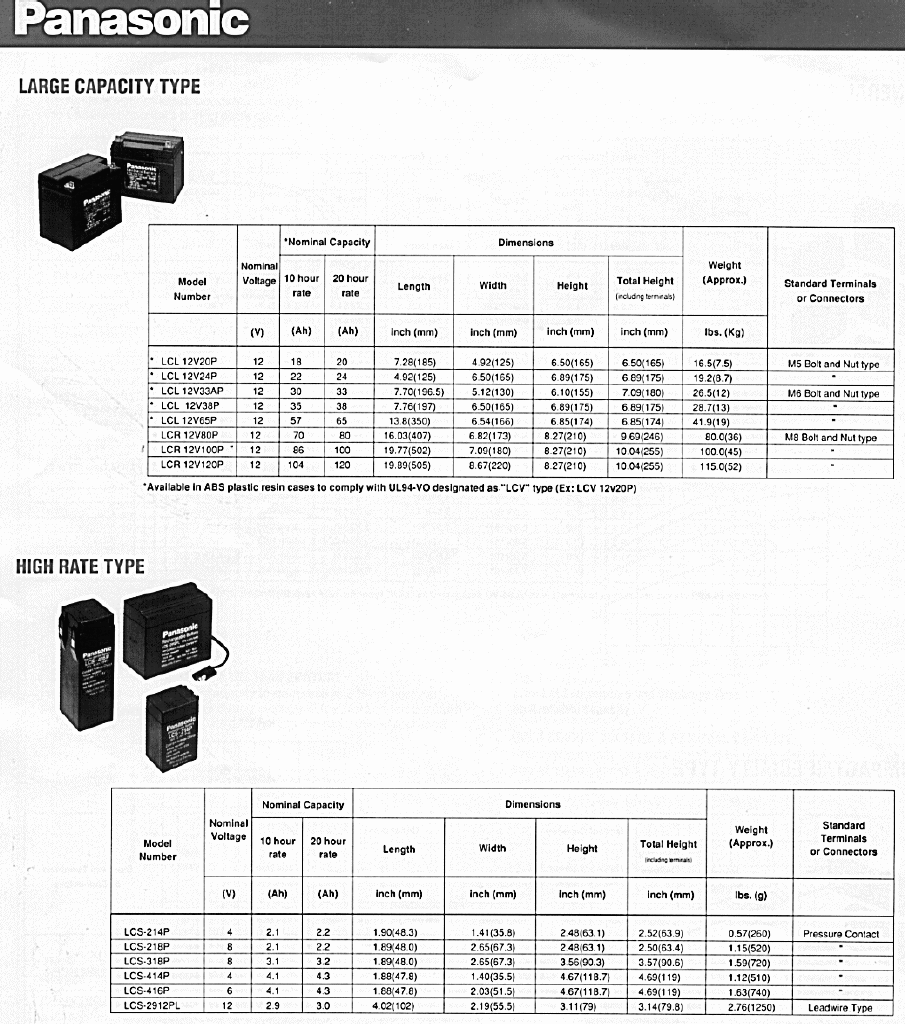

Case size and capacity specs
Case size and capacity specs

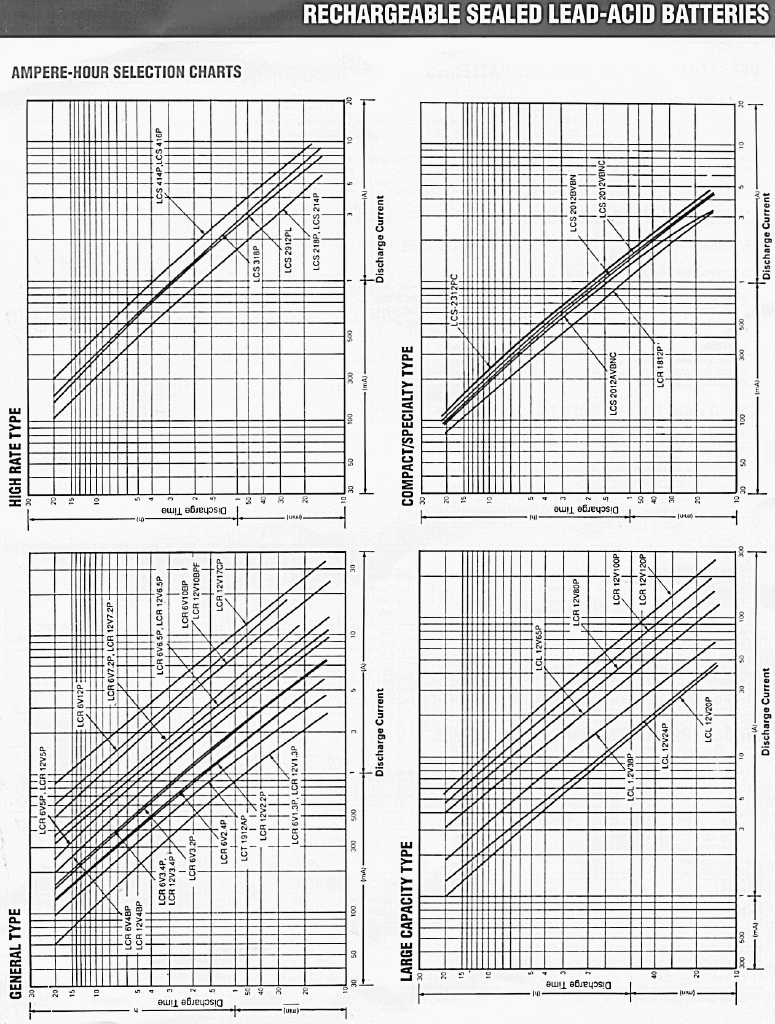

Battery selection charts

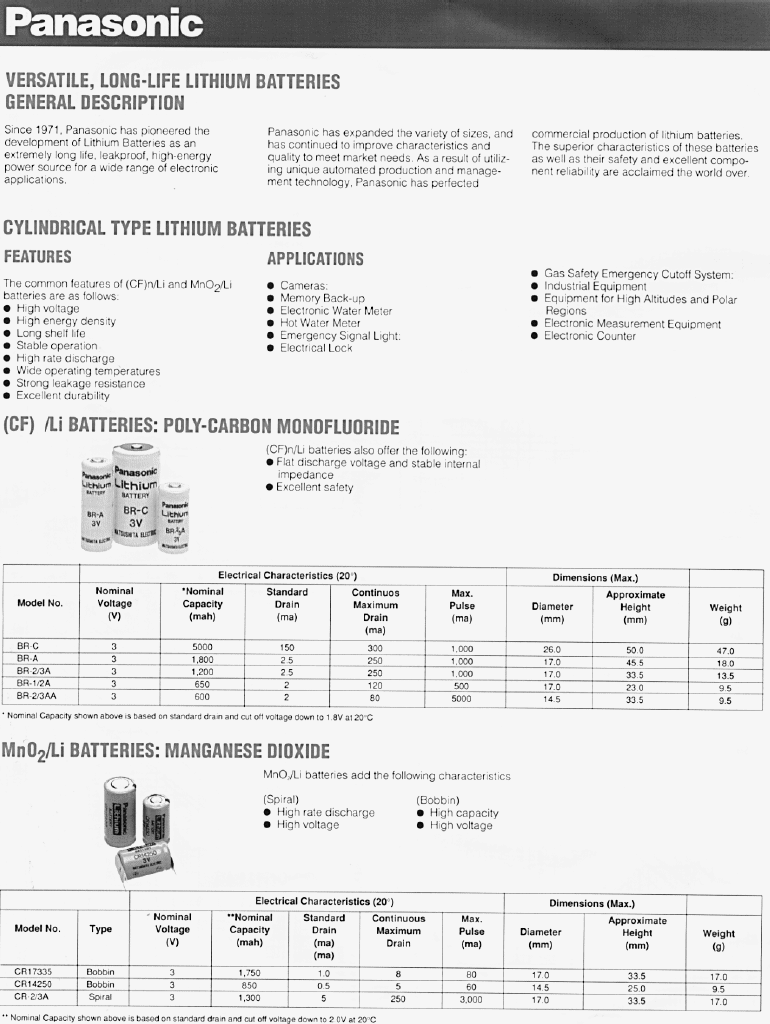

Lithium and Manganese Dioxide batteries

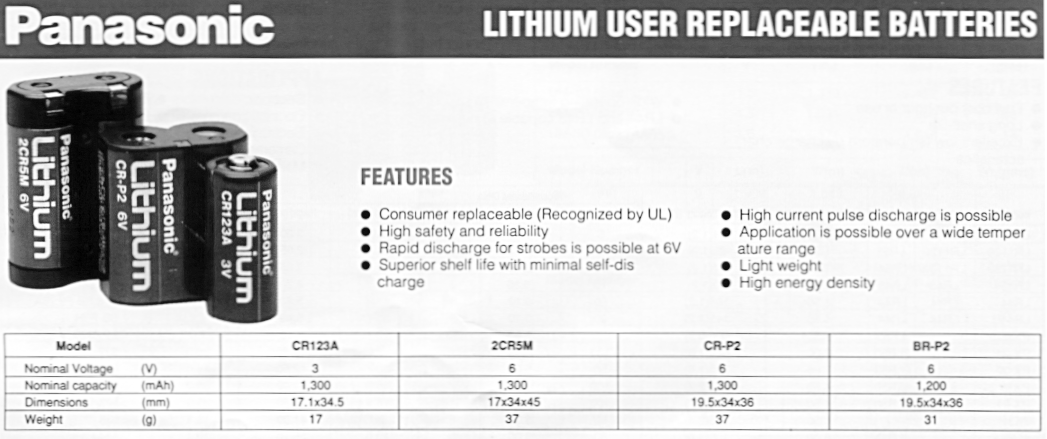

Lithium non-rechargeable

Low Power Detector

Hardware hack which is meant to communicate with powerd daemon to notify the user of a failing battery (by Kevin Pipe)

Last modified: Tue Oct 24 15:11:12 1995
